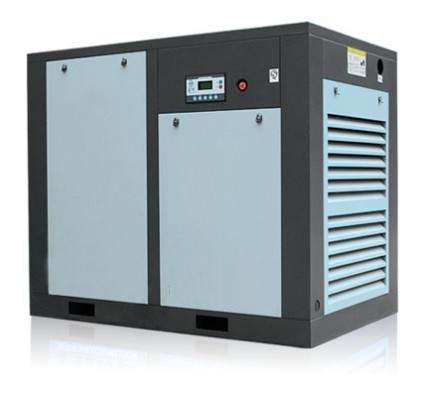

Blue 11kw Screw Compressor 14L 3 Phase Air Cooling Driect Driven

  • Blue 11kw Screw Compressor 14L 3 Phase Air Cooling Driect Driven
  • Blue 11kw Screw Compressor 14L 3 Phase Air Cooling Driect Driven
  • Blue 11kw Screw Compressor 14L 3 Phase Air Cooling Driect Driven
  • Blue 11kw Screw Compressor 14L 3 Phase Air Cooling Driect Driven
محل منبع چین
نام تجاری OEM
گواهی CE
شماره مدل CHIC-15A
مقدار حداقل تعداد سفارش 500
قیمت USD 40-45
جزئیات بسته بندی اندازه بسته بندی (L × W × H) ： 800 میلی متر × 600 میلی متر × 1040 میلی متر
زمان تحویل 7 روز
قابلیت ارائه 500PCS / DAY

برای نمونه و کوپن رایگان با من تماس بگیرید.

واتساپ:0086 18588475571

وی چت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

x
جزئیات محصول
نام کمپرسور باد پیچ ​​صنعتی قابل حمل 11 کیلو وات 15 اسب بخار 8 بار تحویل هوا 1.6 متر مکعب در دقیقه
برق سه فاز 220/60 یا 440/60 (V // هرتز) فشار 8bar
سطح نویز 62 ± 2dB قدرت 15 اسب بخار / 11 کیلووات
N. وزن کن 470 کیلوگرم رنگ آبی
برجسته کردن

11kw screw compressor,blue 11kw screw compressor,14L 3 phase screw compressor

,

blue 11kw screw compressor

,

14L 3 phase screw compressor
پیام بگذارید
توضیحات محصول







1. Compact structure and beautiful appearance.
2. The layout of the control parts is reasonable and compact, and the advanced surface spraying decoration technology is adopted, which makes     the product beautiful and elegant.
3. Large-capacity piggy bank reduces frequent start-ups, extends life and saves maintenance and management costs.
4. Complete varieties, suitable for the needs of various users.

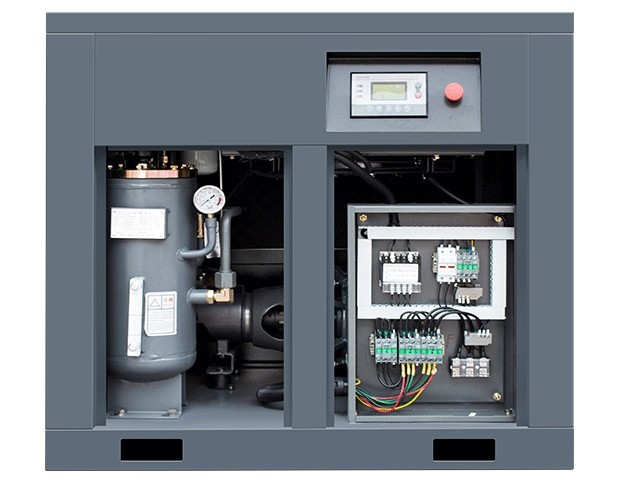

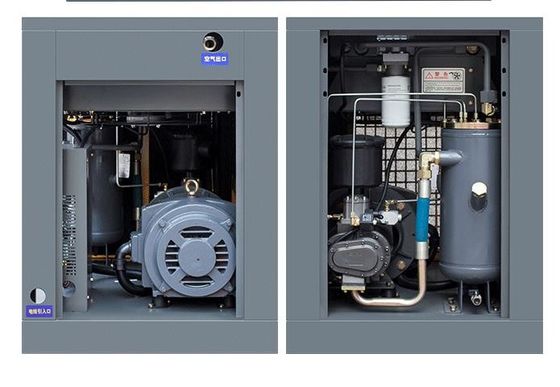

Blue 11kw Screw Compressor 14L 3 Phase Air Cooling Driect Driven 0Blue 11kw Screw Compressor 14L 3 Phase Air Cooling Driect Driven 1





Technical parameters



Model CHIC-15A
Power 15HP/11KW
FAD: (M3/MIN) 1.6
Pressure 8 bar
Cooling Air-cooling
Lubricant 14L
Noise level 65±2dB
Drive method Driect driven type
Discharge temperature Environment temp+15℃
Electricity Three phase 220/60 or 440/60 (V//Hz)
Starting method Y-△ starter
Air outlet: Pipe diameter(inch) R3/4"
Material contact with us
delivery 15-20 days
Oil content of air <2ppm
Dimension 1030MM*850MM*1280MM
Net weight 470KGS

Packaging & Shipping



Packaging Details
Standard export carton or plywood case 1pcs/box
Port
Shanghai/Ningbo

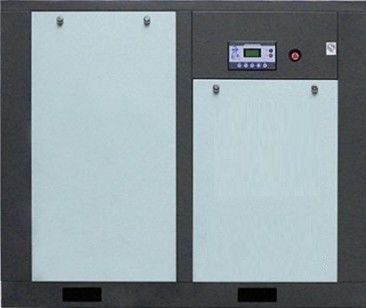

Blue 11kw Screw Compressor 14L 3 Phase Air Cooling Driect Driven 2

Our services



1.We promise to reply your inquiry relational our product within 24hours.

2.OEM&ODM service for your unique idea with absolutely convenient.

3.Experienced foreign trader with professional product knowledge.

4.Value on business credite , promise to protect your sales data, design,patent information.

5. Sample & OEM service is available

6. After-sales service. any question will be settled within 3 days



FAQ



Q1. Are you a factory?
A. Yes, We are professional air compressor factory with more than 10 years experience.

Q2. How can i get a quotation?
A. Leave us message with your purchase requemets and we will reply you within one hour on working time. And you may contact us directly by Trade Manager

Q3. How many design do you have? How can i get your catalog?
A. We have hundreds of advanced design for your choice , And we have new design every year. Just tell us what kind of product you need and we will provide you plenty of choice,

Q4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.

Q5. What's the delivery time and what's the package?
A. Normally the delivery time is about 25-35 days, Al our products are packed with sea worthy package.
