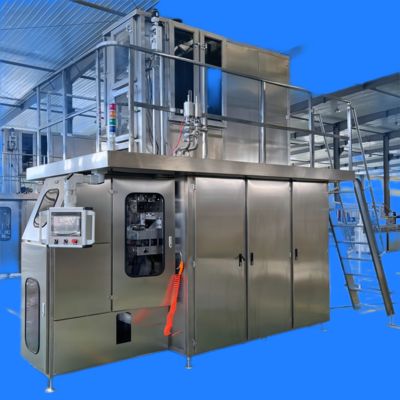

Aseptic Carton Filling Machine with 3m³/min Air Consumption for 1000ml Prisma Square or Basis and SUS304 Material

  • Aseptic Carton Filling Machine with 3m³/min Air Consumption for 1000ml Prisma Square or Basis and SUS304 Material
  • Aseptic Carton Filling Machine with 3m³/min Air Consumption for 1000ml Prisma Square or Basis and SUS304 Material
  • Aseptic Carton Filling Machine with 3m³/min Air Consumption for 1000ml Prisma Square or Basis and SUS304 Material
  • Aseptic Carton Filling Machine with 3m³/min Air Consumption for 1000ml Prisma Square or Basis and SUS304 Material
  • Aseptic Carton Filling Machine with 3m³/min Air Consumption for 1000ml Prisma Square or Basis and SUS304 Material
  • Aseptic Carton Filling Machine with 3m³/min Air Consumption for 1000ml Prisma Square or Basis and SUS304 Material
  • Aseptic Carton Filling Machine with 3m³/min Air Consumption for 1000ml Prisma Square or Basis and SUS304 Material
نام تجاری CHIC
گواهی ISO CE
Model Number CHIC-3000BS
Minimum Order Quantity 1 Pcs
Packaging Details Laminated Paper Cartons
Delivery Time 35-40 Days
Payment Terms 40%TT Deposit And 60% TT Before Shipping
Supply Ability Milk, Juice, Wine, Water, Food And Degergent Sauce,

برای نمونه و کوپن رایگان با من تماس بگیرید.

واتساپ:0086 18588475571

وی چت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

x
جزئیات محصول
مدل CH-3000B کنترل کنید PLC
راه حل Turn Key Proejct اندازه کلاه φ26-φ36، یک اندازه برای یک دستگاه یا سفارشی
دقت پر کردن 0.5-1٪ مصرف هوا 3m³/min، 0.8-1MPa
ظرفیت بسته بندی 1000-3000 CPH فرمت پر کردن 1000 میلی لیتر پریسما، مربع یا پایه
برجسته کردن

3m³/min Air Consumption Aseptic Carton Filling Machine,1000ml Prisma Square or Basis Aseptic Carton Filling Machine,SUS304 Material Aseptic Carton Filling Machine

,

1000ml Prisma Square or Basis Aseptic Carton Filling Machine

,

SUS304 Material Aseptic Carton Filling Machine
پیام بگذارید
توضیحات محصول
Superior Performance Milk Cartons Fill and Seal Machine CH-6000B with SUS304 Material 125ML Cartons
Product Description
The CH series aseptic carton filling machine is designed to fill sterilized liquid food into sterilized packaging material under aseptic conditions. It completes sealing and forming of the package to extend product shelf life. This advanced machine combines aseptic concepts from domestic and international sources, utilizing innovative "triple sterility guarantee" technology to ensure high-performance indicators in aseptic quality, production stability, and automation.
The equipment is suitable for producing beverages like pure milk, goat milk, soy milk, and vegetable protein drinks. Featuring an integrated machine-electrical-pneumatic design with 6 national patents, it offers simple structure, convenient maintenance, and superior performance. Using top-tier international control components, it achieves high automation, easy operation, low failure rates, and energy consumption 1/3 lower than comparable foreign products.
Key Features
  • Advanced fully automatic PLC control system for paper feeding, strip pasting, packaging sterilization, filling, and forming
  • Reliable operation with multi-point sensing alarm control and servo follow-up correction systems
  • Safe sterilization technology ensures product safety
  • Intuitive human-machine interface for convenient operation
  • Key components sourced from internationally renowned companies
  • Compatible with six-layer web base composite materials (PE/paper/aluminum foil)
Aseptic Carton Filling Machine with 3m³/min Air Consumption for 1000ml Prisma Square or Basis and SUS304 Material 0
Technical Specifications
Production Capacity 5000-6000 packets/hour
Filling Range 120ml
Box Shape Brick type
Shelf Life 6-12 months at 25-30ºC
Packaging Material Paper/Polyethylene (PE)/Aluminum film
Power 14kw
Voltage 3 phase 380V/220V 50Hz
Air Consumption 1m³/min 0.8Mpa
Weight 3000kg
Dimensions 4600×1840×3660mm
Machine Components
Item Component Brand Origin
1 PLC Inovance/Omron China/Japan
2 Touch screen Inovance/Omron China/Japan
3 Intermediate relay IDEC Japan
4 Air switch Schneider France
5 Contactor Schneider France
6 Cylinder SMC Japan
7 Electromagnetic valve AIRTAC China
8 Photoelectric Inovance/Omron China/Japan
9 Proximity switch 1 GARLO GAVAZZI Switzerland
10 Proximity switch 2 Autonics Korea
11 UV lamp and components Philips Netherland
12 Servo motor Inovance/Omron China/Japan
13 Servo motor driver Inovance/Omron China/Japan
14 Planetary reducer Newstart China
15 Color sensor SICK Germany
16 Bearing sleeve Igus Germany
17 Valve Yuanan China
18 Temperature control Horning China
19 Structure material SUS304 China
Applications

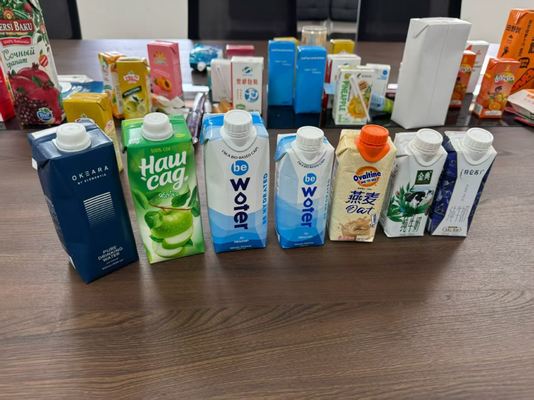

Designed for filling various liquid beverages including soy milk, plant milk, yogurt, fruit/vegetable juice, and plant protein in paper-aluminum-plastic composite cartons. Available in multiple models for different shapes and capacities (125ml to 1000ml) including standard, slim, and diamond carton variations with cap or straw options.
Support and Services
Comprehensive technical support including troubleshooting, maintenance guidance, and training. Services include regular maintenance schedules, spare parts availability, and software updates to maintain peak performance with quick response times to minimize downtime.
Frequently Asked Questions
Q: What is the brand name of the Aseptic Carton Filling Machine?
A: The brand name is CHIC.
Q: What is the model number of the Aseptic Carton Filling Machine?
A: The model number is CHIC-3000BS.
Q: Where is the Aseptic Carton Filling Machine manufactured?
A: The machine is manufactured in China.
Q: What certifications does the Aseptic Carton Filling Machine have?
A: The machine is certified with ISO and CE.
Q: What is the minimum order quantity for the Aseptic Carton Filling Machine?
A: The minimum order quantity is 1 piece.
