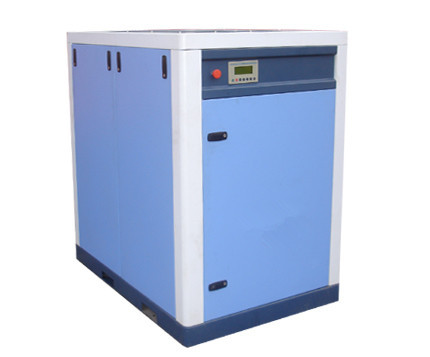

1280mm 50 Hp Rotary Screw Air Compressor Belt Drive 6.2m3 Min

محل منبع چین
نام تجاری OEM
گواهی CE
شماره مدل CHIC-50A
مقدار حداقل تعداد سفارش 500
قیمت USD 40-45
جزئیات بسته بندی اندازه بسته بندی (L × W × H) : 1300 mm × 850mm × 1210 mm
زمان تحویل 7 روز
قابلیت ارائه 500PCS / DAY

برای نمونه و کوپن رایگان با من تماس بگیرید.

واتساپ:0086 18588475571

وی چت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

x
جزئیات محصول
نام کمپرسور هوای پیچ خورده روتاری 37kw 50 اسب بخار CHIC-50A تحویل هوا 6.2 متر مکعب در دقیقه
برق سه فاز 380/60 یا 440/60 (V // هرتز) فشار 8bar
سطح نویز 68 ± 2dB قدرت 50HP / 37KW
N. وزن کن 690 کیلوگرم رنگ آبی
برجسته کردن

1280MM rotary screw air compressor,50HP screw air compressor,1280MM 50 hp screw compressor

,

50HP screw air compressor

,

1280MM 50 hp screw compressor

پیام بگذارید
توضیحات محصول





1. Technical superior electrical control system, caring and considerate maintenance instructions.

2. Reduce the drag of the lubricant.

3. Excellent cooling system.

4. Reduce air leakage.

5. Large capacity, high energy efficiency.

6. Durable, extra large size bearing.

Double control system electric control and air hole are combined which can be selected freely

Adopt advanced numerical control processing erquopment for production with high precision and reliability

Low -speed design strict correction of dynamic balance ,computer - optimized design make the operation more stable

Lower noise . longer life more reliable qulity suitable for 24-hour continuous operation

Using advanced surface spraying decoration technology , the product is beautiful and elegant



1280mm 50 Hp Rotary Screw Air Compressor Belt Drive 6.2m3 Min 0

1280mm 50 Hp Rotary Screw Air Compressor Belt Drive 6.2m3 Min 11280mm 50 Hp Rotary Screw Air Compressor Belt Drive 6.2m3 Min 2





Technical parameters



Model CHIC-50A
Power 50HP/37KW
FAD: (M3/MIN) 6.2
Pressure 8 bar
Cooling Air-cooling
Lubricant 28L
Noise level 68±2dB
Drive method Belt drive type
Discharge temperature Environment Temp+15℃-18℃
Electricity Three phase 220/60 or 440/60 (V//Hz)
Starting method Y-△ starter
Air outlet: Pipe diameter(inch) R1.1/4
delivery 15-20 days
Oil content of air <2ppm
Dimension 1030MM*850MM*1280MM
Net weight 490KGS



Packaging & Shipping



Packaging Details
Standard export carton or plywood case 1pcs/box
Port
Shanghai/Ningbo



1280mm 50 Hp Rotary Screw Air Compressor Belt Drive 6.2m3 Min 3

Our services



1.We promise to reply your inquiry relational our product within 24hours.

2.OEM&ODM service for your unique idea with absolutely convenient.

3.Experienced foreign trader with professional product knowledge.

4.Value on business credite , promise to protect your sales data, design,patent information.

5. Sample & OEM service is available

6. After-sales service. any question will be settled within 3 days



FAQ



Q1. Are you a factory?
A. Yes, We are professional air compressor factory with more than 10 years experience.

Q2. How can i get a quotation?
A. Leave us message with your purchase requemets and we will reply you within one hour on working time. And you may contact us directly by Trade Manager

Q3. How many design do you have? How can i get your catalog?
A. We have hundreds of advanced design for your choice , And we have new design every year. Just tell us what kind of product you need and we will provide you plenty of choice,

Q4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.

Q5. What's the delivery time and what's the package?
A. Normally the delivery time is about 25-35 days, Al our products are packed with sea worthy package.
