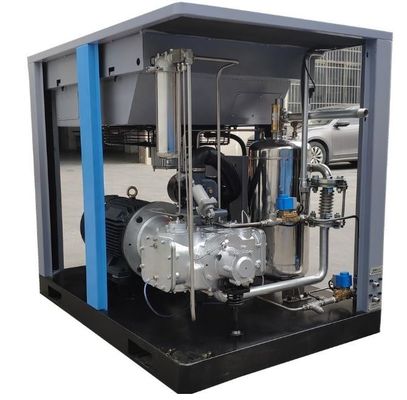

15KW Oil Free Screw Air Compressor Centrifugal 8 Bar Direct Driven Type

محل منبع چین
نام تجاری OEM
گواهی CE
شماره مدل CHIC-20A
مقدار حداقل تعداد سفارش 1
جزئیات بسته بندی اندازه بسته بندی (L × W × H) : 1600 mm × 9100mm × 1350 mm
زمان تحویل 7 روز
قابلیت ارائه 500PCS / DAY

برای نمونه و کوپن رایگان با من تماس بگیرید.

واتساپ:0086 18588475571

وی چت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

x
جزئیات محصول
نام کمپرسور هوا اسکرو بدون روغن روتاری مستقل با استفاده مستقیم 20HP 15KW 8Bar تحویل هوا 2.4 متر مکعب در دقیقه
برق سه فاز 380/60 یا 440/60 (V // هرتز) فشار 8bar
سطح نویز 72dB قدرت 15 اسب بخار / 11 کیلووات
N. وزن کن 293 کیلوگرم رنگ آبی
برجسته کردن

8Bar Rotary Oil Free Screw Air Compressor,15KW Oil Free Screw Air Compressor,8Bar oil free centrifugal compressor

,

15KW Oil Free Screw Air Compressor

,

8Bar oil free centrifugal compressor

پیام بگذارید
توضیحات محصول

Independent inlet silencer box. Ensure the air filter inlet temperature equal to the ambient temperature.

1. 6” touch screen displayer.

2. Full features protection.

3. Multi intelligent control, such as setting running schedule.

4. Support Modbus RTU.







15KW Oil Free Screw Air Compressor Centrifugal 8 Bar Direct Driven Type 0



Technical parameters



Model CHIC-20A
Power 20HP/15KW
FAD: (M3/MIN) 2.4
Pressure 8bar
Cooling Air-cooling
Noise level 68dB
Drive method Direct Driven type
Discharge temperature Environment temp+15℃
Electricity Three phase 380/60 or 440/60 (V//Hz)
Air outlet: Pipe diameter(inch) R1
delivery 15-20 days
Dimension 1600MM*9100MM*1350MM
Net weight 293KGS


Packaging & Shipping


Packaging Details
Standard export carton or plywood case 1pcs/box
Port
Shanghai/Ningbo



15KW Oil Free Screw Air Compressor Centrifugal 8 Bar Direct Driven Type 1

Our services



1.We promise to reply your inquiry relational our product within 24hours.

2.OEM&ODM service for your unique idea with absolutely convenient.

3.Experienced foreign trader with professional product knowledge.

4.Value on business credite , promise to protect your sales data, design,patent information.

5. Sample & OEM service is available

6. After-sales service. any question will be settled within 3 days



FAQ



Q1. Are you a factory?
A. Yes, We are professional air compressor factory with more than 10 years experience.

Q2. How can i get a quotation?
A. Leave us message with your purchase requemets and we will reply you within one hour on working time. And you may contact us directly by Trade Manager

Q3. How many design do you have? How can i get your catalog?
A. We have hundreds of advanced design for your choice , And we have new design every year. Just tell us what kind of product you need and we will provide you plenty of choice,

Q4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.

Q5. What's the delivery time and what's the package?
A. Normally the delivery time is about 25-35 days, Al our products are packed with sea worthy package.
