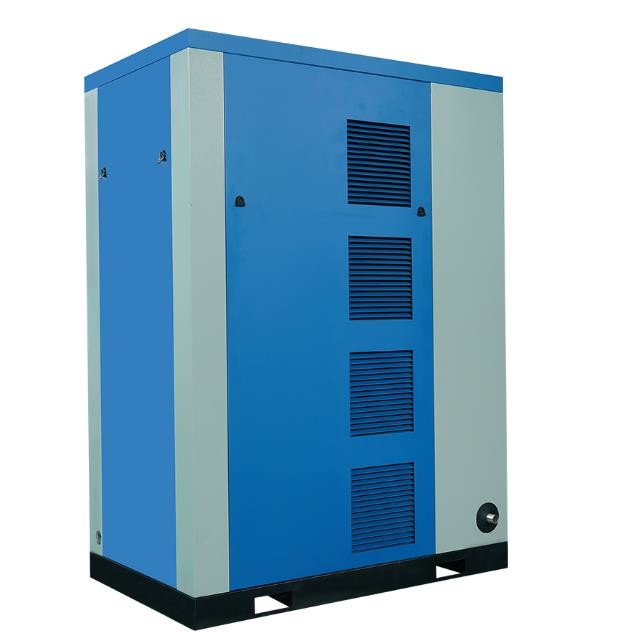

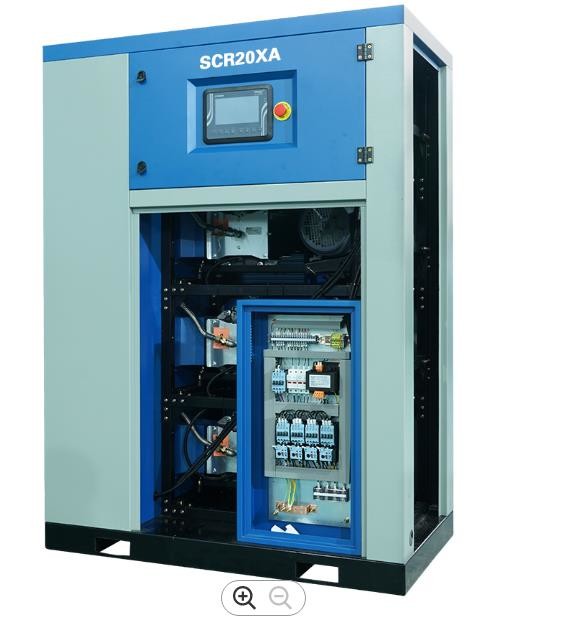

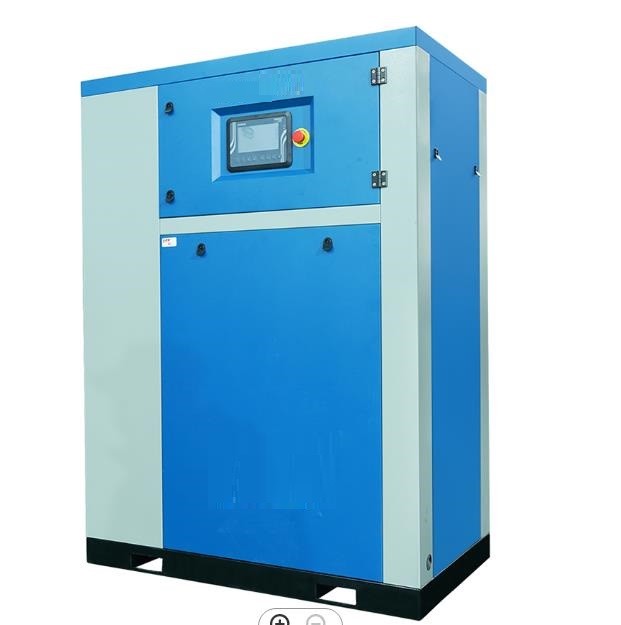

15KW Small Rotary Screw Air Compressor 440V 1.6m3 Min 650KGS

برای نمونه و کوپن رایگان با من تماس بگیرید.
واتساپ:0086 18588475571
وی چت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xنام | کمپرسور هوای پیچ دار بدون روغن روتاری 20HP 15KW 8Bar | تحویل هوا | 1.6 متر مکعب در دقیقه |
---|---|---|---|
برق | سه فاز 380/60 یا 440/60 (V // هرتز) | فشار | 8bar |
سطح نویز | 68dB | قدرت | 20HP / 15KW |
N. وزن کن | 650 کیلوگرم | رنگ | آبی |
برجسته کردن | 15KW small rotary screw air compressor,440V small rotary screw air compressor,440V rotary type compressor,440V small rotary screw air compressor,440V rotary type compressor |
we use a hydraulic load conversion system instead of a pneumatic system to avoid periodic replacement of pneumatic components and reduces unnecessary downtime Independent inlet silencer box.
Ensure the air filter inlet temperature equal to the ambient temperature.and maintenance costs.
Independent inlet silencer box. Ensure the air filter inlet temperature equal to the ambient temperature.
Technical parameters
Model | CHIC-20A | ||
Power | 20HP/15KW | ||
FAD: (M3/MIN) | 1.6 | ||
Pressure | 8 bar | ||
Cooling | Air-cooling | ||
Noise level | 68dB | ||
Drive method | Belt drive type | ||
Discharge temperature | Environment temp+15℃ | ||
Electricity | Three phase 380/60 or 440/60 (V//Hz) | ||
Air outlet: Pipe diameter(inch) | R1 | ||
delivery | 15-20 days | ||
Dimension | 800MM*1200MM*1800MM | ||
Net weight | 650KGS |
Packaging & Shipping
Our services
1.We promise to reply your inquiry relational our product within 24hours.
2.OEM&ODM service for your unique idea with absolutely convenient.
3.Experienced foreign trader with professional product knowledge.
4.Value on business credite , promise to protect your sales data, design,patent information.
5. Sample & OEM service is available
6. After-sales service. any question will be settled within 3 days
FAQ
Q1. Are you a factory?
A. Yes, We are professional air compressor factory with more than 10 years experience.
Q2. How can i get a quotation?
A. Leave us message with your purchase requemets and we will reply you within one hour on working time. And you may contact us directly by Trade Manager
Q3. How many design do you have? How can i get your catalog?
A. We have hundreds of advanced design for your choice , And we have new design every year. Just tell us what kind of product you need and we will provide you plenty of choice,
Q4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.
Q5. What's the delivery time and what's the package?
A. Normally the delivery time is about 25-35 days, Al our products are packed with sea worthy package.
